DESCRIPTION of Launch Amplifier

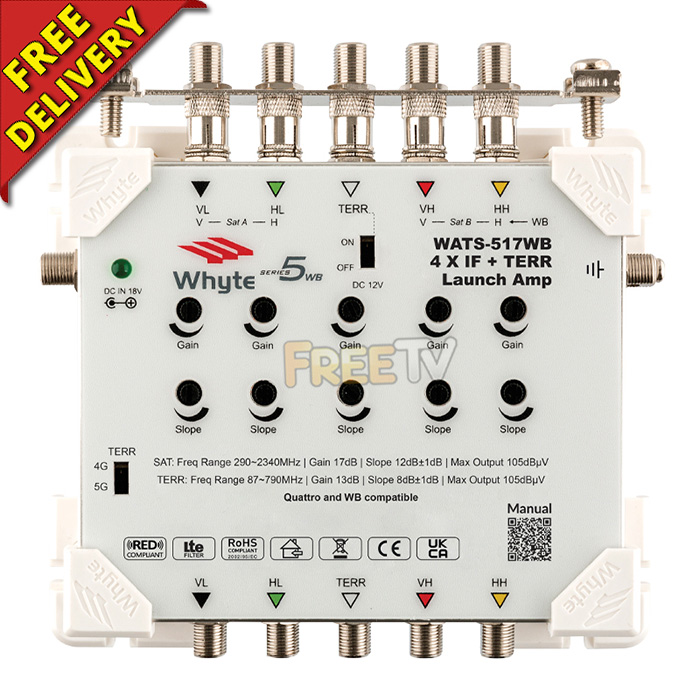

- WHYTE Series 5 Launch Amplifier
- Used in conjunction with Sky Q installations
- Model: WATS-517
- Gain control on all inputs
- Slope control to all inputs
- Selectable 4G/5G LTE filter
- SAT Gain 17dB / TERR Gain 13dB
- Colour coded inputs and outputs
- Comes complete with input earth bar
- Switchable 12V DC Supply to Terrestrial Input
- 18V Auxiliary Input injects power to the HL & HH trunk lines
- Frequency: SAT 950-2150MHz | TERR 87-790MHz
- Inputs: 4 SAT + 1 TERR
- Outputs: 4 SAT + 1 TERR
- Gain: SAT >17dB | TERR >13dB
- Gain Control: SAT 10±1dB | TERR 10±1dB
- Slope Control: SAT 8±2dB | TERR 8±2dB
- 4G/5G Switchable Filter: YES
- TERR 12V DC Masthead Supply (switchable): 100mA
- Input/Output Return Loss: SAT >8dB | TERR >8dB
- Max Output Level SAT: SAT (IMA³ -35dB) EN50083-3 105dBμV
- Max Output Level TERR: TERR (IMA³ -60dB) EN50083-5 108dBμV
- LNB Power Supply Max: 2A
- SAT Trunk DC Pass: 2A Max
- TERR Trunk DC Pass: NO
- Powering: Via DC Input | Via SAT HL + HH Trunks
- Power Consumption: 150mA Max
- Power Indication: LED
- Input Earth Bar: Fitted
- Earth Lug: Up to 6mm² Core
- Dimensions Including Earth Bars: 158 x 154 x 43mm
- Weight: 470g
- Note: This is a specialty product and is ordered in to fulfill customer orders
- Please allow 1-2 days extra for delivery and order well in advance of when needed
