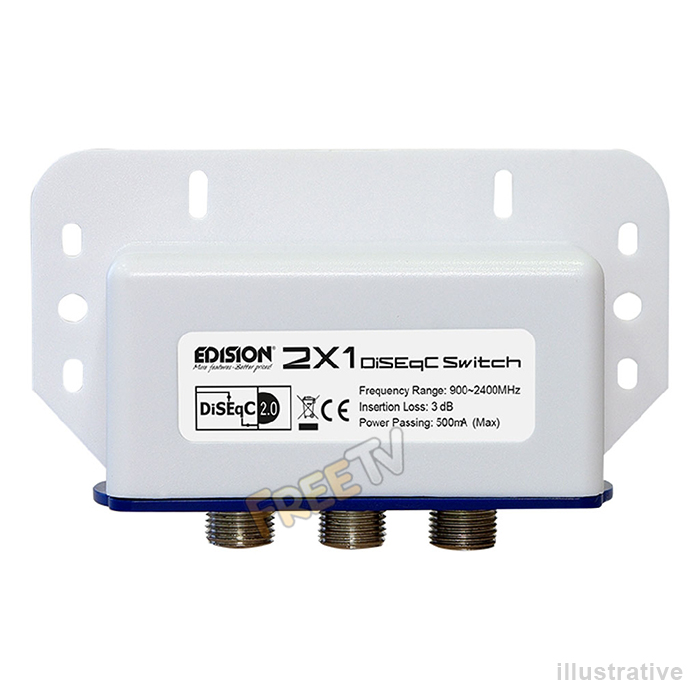

Smart 2x1 Diseqc Switch
Smart 2x1 Diseqc Switch allows a Satellite Receiver to automatically Switch between 2 Satellite Dishes
Technical Data :
- For switching of 2 single LNBs
- Inputs: 2
- Output : 1
- Connection type: F-type
- Manufacturer: Smart
- Colour: Grey
- Power: 12-20V DC / 30mA
- Range: 950-2300 MHz
- Insertion Loss: 3dB
- Water Resistent
USES of a Smart 2x1 DiSEqC Satellite Switch
- Used to switch between 2 Satellite LNBs. The receiver's 13volts and 22KHz tone is used to control which LNB is being selected
- This allows a Diseqc enabled satellite receiver to switch between the 2 LNBs depending on what channel has been selected by the user on the satellilte box
ADVANTAGES of a Smart 2x1 DiSEqC Satellite Switch
- Inexpensive and effective means of combining 2 Satellite LNBs
- Is totally automated no need to connect or disconnect cables when going from one satellite feed to another
DISADVANTAGES of a Smart 2x1 DiSEqC Satellite Switch
- More expensive and slightly harder to install than a Manual A B satellite switch
- Satellite Receiver needs to be Diseqc Enabled
An example of how you would set up a diseqc switch using Saorsat & Freesat satellites
