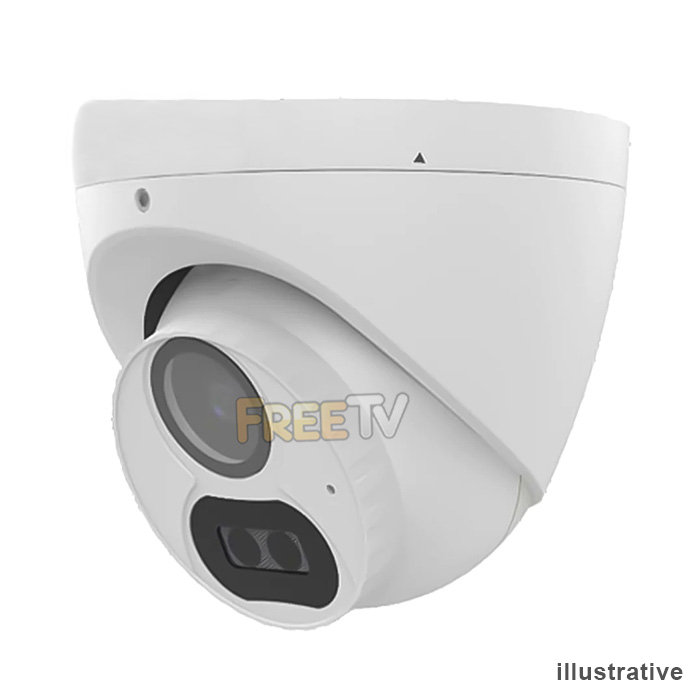

UNV™ 5MP Dome Camera (AHD / CVI / TVI / CVBS, 40m IR, 2.8mm Lens, Microphone) [Trade Only, Login For Prices]

5H_11012_UVW
Out of Stock
RRP: 12,500.00
10,000.00 (ex VAT)
(12,300.00 Incl. VAT) You save: €2,500.00 (20%)

video guides available

CCTV DVR Compatibility

DESCRIPTION of Dome Camera

  • Professional Quality Dome Camera
  • AKA Security / Surveillance Camera, Turret Camera, Eyeball Camera
  • Manufacturer: UNV by Uniview
  • Model: UAC-T125-AF28LM
  • Also Works With Hikvision / Dahua DVRs 5 Megapixels & Above
  • 1/2.7" CMOS Sensor
  • Wide Angle 2.8mm Fixed Lens
  • LightHunter Low Light Camera
  • Minimum Illumination
    • 0.005lux (F1.6, AGC ON)
    • 0lux (IR On)
  • Field of View: Approx. 109° (Horizontal)
  • Supports 180° Horizontal & Vertical Flip
  • Night Vision: 40m IR
  • Resolution / Frame Rates
    • TVI: 5MP @ 20fps.12.5fps, 4MP @ 30fps/25fps, 2MP @ 30fps/25fps
    • AHD: 5MP @ 20fps, 4MP @ 30fps/25fps, 2MP @ 30fps/24fps
    • CVI: 5MP @ 25fps, 4MP@30fps/25fps, 2MP @ 30fps/25fps
    • CVBS: PAL, NTSC
  • IP67 Weatherproof Rating
  • Colour: White
  • DWDR, HLC, BLC
  • Smart IR
  • Integrated Microphone
  • Power Supply: 12Vdc
  • Power Input: DC Socket
  • RS485 Control: No
  • Note: Power Supply Not Included

USES of Dome Camera

  • For indoor & outdoor use such as covering an office, canteen, hall or yard
  • Use with a network video recorder
  • Use with a hybrid DVR which has IP camera capabilities
  • Use as a standalone IP camera

ADVANTAGES of Dome Camera

  • Gives a fantastic 5MP picture, well in excess of 1080p full HD
  • It is simple and easy to mount on wall or ceiling
  • Works with DVRs that support cameras and 5MP resolution
  • Suitable for indoor or outdoor use
  • Has integrated microphone for audio recording
  • 2.8mm lens gives a very wide angle of view
  • LightHunter technology ensures high image quality in low illumination environments

DISADVANTAGES of Dome Camera

  • 5MP dome CCTV cameras record at higher resolutions, so bear than in mind when picking your hard drive to install and perhaps pick 1 size larger to ensure plenty of recording space
  • It has a 2.8mm fixed lens and cannot be focused
Coming soon...

No posts found

Write a review

Installation Diagram (camera-dvr-setup.pdf, 647 Kb) [Download]
