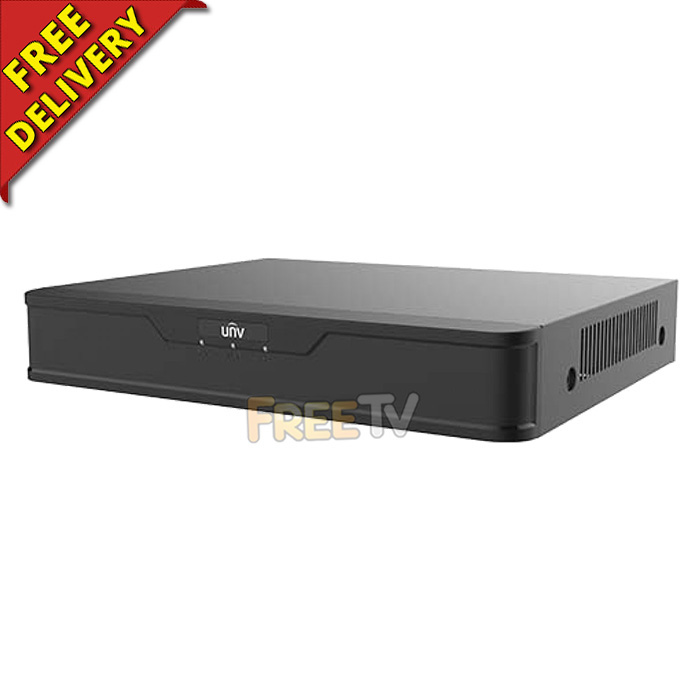

DESCRIPTION of 4 Way DVR
- Top Quality 4 Way DVR
- AKA CCTV Recorder
- Manufacturer: UNV by Uniview
- Model: XVR301-04G3
- AKA 4 Channel / Camera Digital Video Recorder, XVR
- Hybrid DVR: AHD / CVI / CVBS / TVI / IP
- Supports CCTV Cameras 4 Megapixels & Lower
- Video & Audio
- AHD Camera: 5MP @ 20fps, 4MP @ 30fps, 2MP @ 30fps, 1MP @ 60fps
- TVI Camera: 5MP @ 20fps, 4MP @ 30fps, 2MP @ 30fps, 1MP @ 60fps
- CVI Camera: 5MP @ 20fps, 4MP @ 30fps, 2MP @ 30fps, 1MP @ 30fps
- CVBS Camera: PAL/NTSC
- IP Video Input: 2-ch (Only IP up to 6ch), Each Channel up to 4MP
- Audio IN/OUT: 1 Channel, RCA
- Interface: 1x HDMI, 1x VGA
- Storage Capacity: 1 SATA Port (Max. 8TB HDD)
- 2x USB 2.0 Ports
- Power Supply: 12Vdc
- Dimensions: 260 x 226 x 47mm
- UL / CE / FCC / RoHS / WEEE Certified
- For Remote Viewing, Download Free App Called EZView / UNV-Link
How Much Can I Record?
- Based on the following scenario
- 2TB Hard Drive
- Resolution: 1920 x 1080p (2 Megapixels)
- Number of CCTV Cameras: 4
- Recording Frame Rate: 30fps (Frames Per Second)
- Recording Mode: 24/7
- Compression Standard: H.265
- This will offer around 12 days of stored recordings
- Notes on recording rates
- Selecting a lower resolution, reducing number of cameras or frame rate will greatly increase capacity
- Higher compression will also allow for more recording
- DVR can support up to 1x 8TB hard drive
USES of 4 Way DVR
- Suitable for both small business, farming & domestic applications
- Idea for situations where full HD or higher quality playback is desired
- Can be used where there is a mix of existing cameras already
ADVANTAGES of 4 Way DVR
- The picture quality is incredible
- Uniview alongside Dahua & Hikvision are the market leaders for professional DVRs due to range, specification and price
- It is extremely reliable, easy to use and can support up to 4 CCTV cameras
- It comes with a P2P App - it is extremely easy to setup (No need to have a static IP or setup port forwarding)
- It supports networking, mobile phone & PC viewing
- It comes at a competitive price for it's specification
- It can record way in excess of 1080p full HD
- It has a HDMI output as well as VGA
- It is a hybrid DVR which means it can support 5 technologies (TVI, AHD, CVI, CVBS & IP)
DISADVANTAGES of 4 Way DVR
- It can't support cameras higher than 5MP resolution
